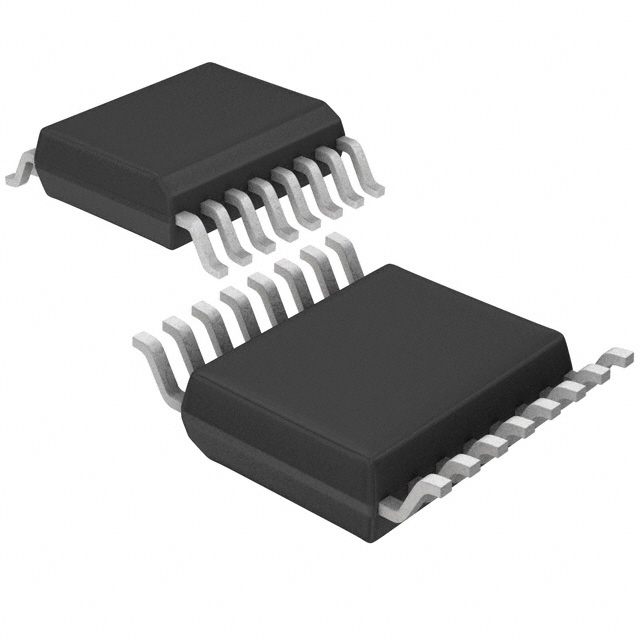

Image maybe reresentation
See specs for product details.
See specs for product details.
ACPL-247-560E
| Part No.: | ACPL-247-560E |
| RoHs Status: | RoHS Compliant |
| Manufacturer/Brand: | Broadcom Limited |
| Stock Condition: | In stock:24323 |
| Description: | OPTOISO 3KV 4CH TRANS 16SOIC |
| Ship From: | Hong Kong |
| Datasheets: | |
| Shhipment Way: | DHL/Fedex/TNT/UPS/EM |
| Ladder Price: | 1+ $2.28 2000+ $0.8602 |
| Recent price fluctuations have been significant. By inquiring now, you may get a price up to 50% lower than expected. |
WARM TIPS
- Product parameters show on this page may contain errors. Please refer to datasheet for specific product information.
- Please contact our sales staff for a real-time quotation as our website may not reflect the latest information on all products. The final price is subject to the inquiry result.
REQUEST QUOTE
Please fill in all required fields and click "
SUBMIT REQUEST"
| *Part No. | ACPL-247-560E |
| *Quantity | |
| Target Price(USD) | |
| Company Name | |
| *Contact Name | |
| *Your Email | |
| Phone | |
| Message | |
| *Company Type | OEM/CEM Distributor/Reseller Others |
Submit Request | |
Part No.
ACPL-247-560E
Operating Temperature
-55°C ~ 110°C
Input Type
DC
Current Transfer Ratio (Max)
600% @ 5mA
Rise / Fall Time (Typ)
2µs, 3µs
Output Type
Transistor
Voltage - Isolation
3000Vrms
Mounting Type
Surface Mount
Voltage - Output (Max)
80V
Product Status
Active
Supplier Device Package
16-SO
Package / Case
16-SOIC (0.173", 4.40mm Width)
Number of Channels
4
Current Transfer Ratio (Min)
100% @ 5mA
Voltage - Forward (Vf) (Typ)
1.2V
Package
Tape & Reel (TR);Cut Tape (CT);Digi-Reel®
Vce Saturation (Max)
400mV
Current - Output / Channel
50mA
Turn On / Turn Off Time (Typ)
3µs, 3µs
Current - DC Forward (If) (Max)
50 mA
