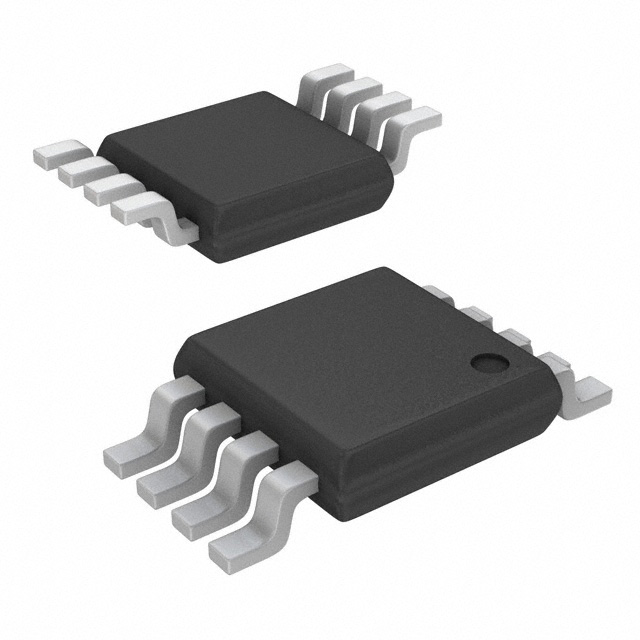

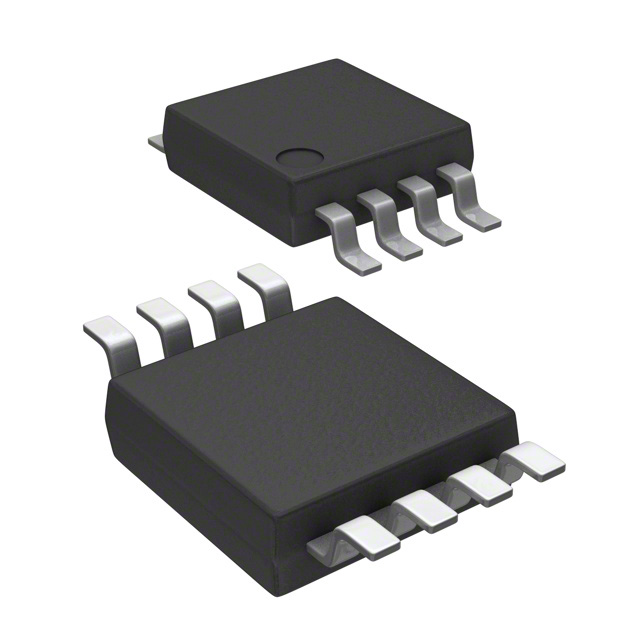

Image maybe reresentation
See specs for product details.
See specs for product details.
IRF7503TRPBF
| Part No.: | IRF7503TRPBF |
| RoHs Status: | RoHS Compliant |
| Manufacturer/Brand: | Infineon Technologies |
| Stock Condition: | In stock:102351 |
| Description: | MOSFET 2N-CH 30V 2.4A MICRO8 |
| Ship From: | Hong Kong |
| Datasheets: | |
| Shhipment Way: | DHL/Fedex/TNT/UPS/EM |
| Ladder Price: | 1+ $0.46 4000+ $0.216 |
| Recent price fluctuations have been significant. By inquiring now, you may get a price up to 50% lower than expected. |
WARM TIPS
- Product parameters show on this page may contain errors. Please refer to datasheet for specific product information.
- Please contact our sales staff for a real-time quotation as our website may not reflect the latest information on all products. The final price is subject to the inquiry result.
REQUEST QUOTE
Please fill in all required fields and click "
SUBMIT REQUEST"
| *Part No. | IRF7503TRPBF |
| *Quantity | |
| Target Price(USD) | |
| Company Name | |
| *Contact Name | |
| *Your Email | |
| Phone | |
| Message | |
| *Company Type | OEM/CEM Distributor/Reseller Others |
Submit Request | |
Part No.
IRF7503TRPBF
Operating Temperature
-55°C ~ 150°C (TJ)
FET Feature
Logic Level Gate
Configuration
2 N-Channel (Dual)
Input Capacitance (Ciss) (Max) @ Vds
210pF @ 25V
Gate Charge (Qg) (Max) @ Vgs
12nC @ 10V
Mounting Type
Surface Mount
Product Status
Active
Rds On (Max) @ Id, Vgs
135mOhm @ 1.7A, 10V
Vgs(th) (Max) @ Id
1V @ 250µA
Supplier Device Package
Micro8™
Drain to Source Voltage (Vdss)
30V
Package / Case
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Technology
MOSFET (Metal Oxide)
Power - Max
1.25W
Current - Continuous Drain (Id) @ 25°C
2.4A
Package
Tape & Reel (TR);Cut Tape (CT);Digi-Reel®
