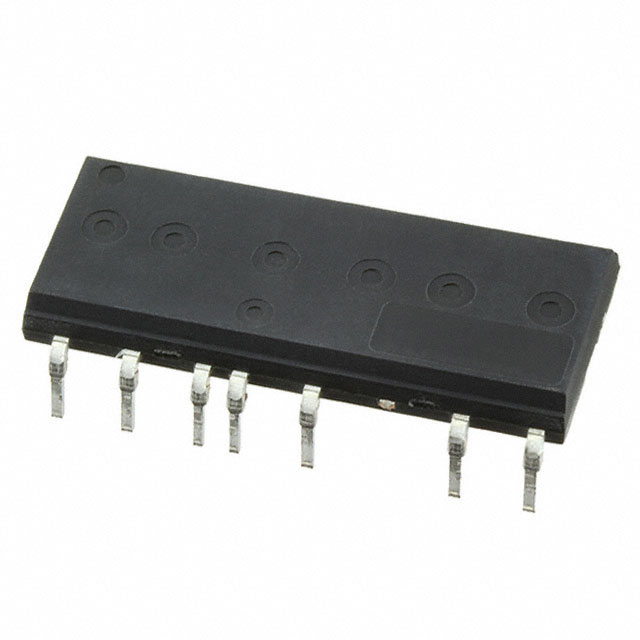

Image maybe reresentation
See specs for product details.
See specs for product details.
IRSM505-084DA-IR
| Part No.: | IRSM505-084DA-IR |
| Manufacturer/Brand: | International Rectifier |
| Stock Condition: | In stock:4230 |
| Description: | IC HALF BRIDGE DRIVER 4.6A 23DIP |
| Ship From: | Hong Kong |
| Datasheets: | |
| Shhipment Way: | DHL/Fedex/TNT/UPS/EM |
| Ladder Price: | 62+ $4.87 |
| Recent price fluctuations have been significant. By inquiring now, you may get a price up to 50% lower than expected. |
WARM TIPS
- Product parameters show on this page may contain errors. Please refer to datasheet for specific product information.
- Please contact our sales staff for a real-time quotation as our website may not reflect the latest information on all products. The final price is subject to the inquiry result.
REQUEST QUOTE
Please fill in all required fields and click "
SUBMIT REQUEST"
| *Part No. | IRSM505-084DA-IR |
| *Quantity | |
| Target Price(USD) | |
| Company Name | |
| *Contact Name | |
| *Your Email | |
| Phone | |
| Message | |
| *Company Type | OEM/CEM Distributor/Reseller Others |
Submit Request | |
Part No.
IRSM505-084DA-IR
Operating Temperature
-40°C ~ 150°C (TJ)
Applications
AC Motors
Output Configuration
Half Bridge (3)
Load Type
Inductive
Voltage - Load
200V (Max)
Mounting Type
Through Hole
Current - Peak Output
15A
Rds On (Typ)
340mOhm LS, 340mOhm HS
Product Status
Active
Supplier Device Package
23-DIP
Fault Protection
UVLO
Package / Case
23-DIP Module (0.573", 14.55mm)
Technology
MOSFET (Metal Oxide)
Voltage - Supply
13.5V ~ 16.5V
Features
Bootstrap Circuit
Package
Bulk
Current - Output / Channel
4.6A
Interface
Logic
