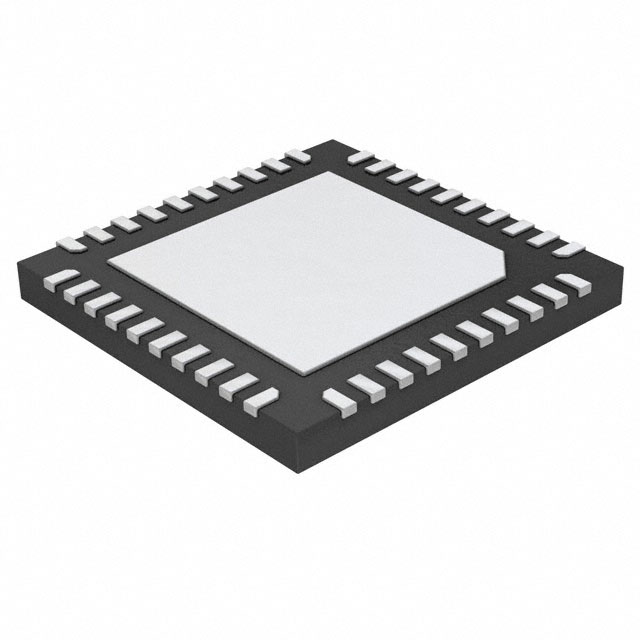

Image maybe reresentation
See specs for product details.
See specs for product details.
MP6536DU-LF-Z
| Part No.: | MP6536DU-LF-Z |
| RoHs Status: | RoHS Compliant |
| Manufacturer/Brand: | Monolithic Power Systems Inc. |
| Stock Condition: | In stock:4601 |
| Description: | IC HALF BRIDGE DRIVER 5.5A 40QFN |
| Ship From: | Hong Kong |
| Datasheets: | |
| Shhipment Way: | DHL/Fedex/TNT/UPS/EM |
| Ladder Price: | 1+ $3 5000+ $1.4479 |
| Recent price fluctuations have been significant. By inquiring now, you may get a price up to 50% lower than expected. |
WARM TIPS
- Product parameters show on this page may contain errors. Please refer to datasheet for specific product information.
- Please contact our sales staff for a real-time quotation as our website may not reflect the latest information on all products. The final price is subject to the inquiry result.
REQUEST QUOTE
Please fill in all required fields and click "
SUBMIT REQUEST"
| *Part No. | MP6536DU-LF-Z |
| *Quantity | |
| Target Price(USD) | |
| Company Name | |
| *Contact Name | |
| *Your Email | |
| Phone | |
| Message | |
| *Company Type | OEM/CEM Distributor/Reseller Others |
Submit Request | |
Part No.
MP6536DU-LF-Z
Operating Temperature
-40°C ~ 125°C (TJ)
Applications
DC Motors, General Purpose
Output Configuration
Half Bridge (3)
Load Type
Capacitive
Voltage - Load
5V ~ 26V
Mounting Type
Surface Mount
Current - Peak Output
5.5A
Rds On (Typ)
140mOhm LS + HS
Product Status
Active
Supplier Device Package
40-QFN (5x5)
Fault Protection
Current Limiting, Over Temperature, Short Circuit, UVLO
Package / Case
40-VFQFN Exposed Pad
Technology
Power MOSFET
Voltage - Supply
5V ~ 26V
Features
Bootstrap Circuit
Package
Tape & Reel (TR);Cut Tape (CT);Digi-Reel®
Current - Output / Channel
5.5A
Interface
Logic, PWM
