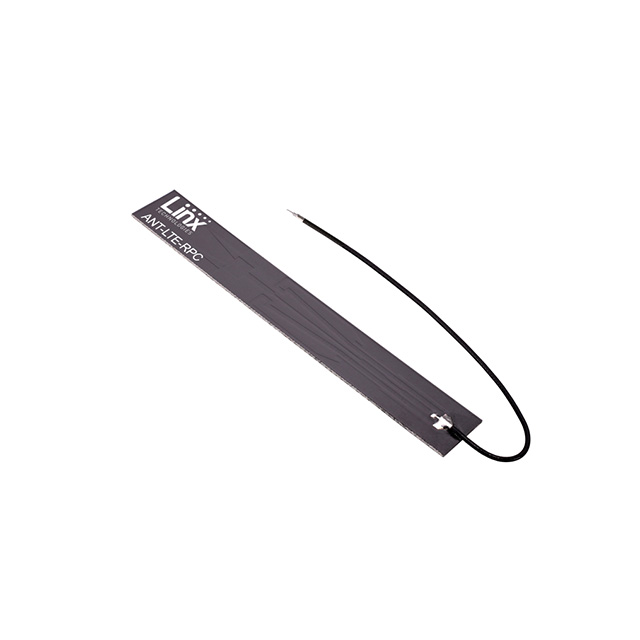

ANT-LTE-RPC-UFL
| Part No.: | ANT-LTE-RPC-UFL |
| RoHs Status: | RoHS Compliant |
| Manufacturer/Brand: | TE Connectivity Linx |
| Stock Condition: | In stock:1178 |
| Description: | RF ANT LTE RIGID PCB ADHES UFL |
| Ship From: | Hong Kong |
| Datasheets: | |
| Shhipment Way: | DHL/Fedex/TNT/UPS/EM |
| Ladder Price: | 1+ $5.84 |
| Recent price fluctuations have been significant. By inquiring now, you may get a price up to 50% lower than expected. |
WARM TIPS
- Product parameters show on this page may contain errors. Please refer to datasheet for specific product information.
- Please contact our sales staff for a real-time quotation as our website may not reflect the latest information on all products. The final price is subject to the inquiry result.
REQUEST QUOTE
Please fill in all required fields and click "
SUBMIT REQUEST"
| *Part No. | ANT-LTE-RPC-UFL |
| *Quantity | |
| Target Price(USD) | |
| Company Name | |
| *Contact Name | |
| *Your Email | |
| Phone | |
| Message | |
| *Company Type | OEM/CEM Distributor/Reseller Others |
Submit Request | |
Part No.
ANT-LTE-RPC-UFL
Frequency Range
600MHz ~ 3.8GHz
Applications
2G, 3G, 4G, Beidou, COMPASS, GALILEO, GLONASS, GNSS, GPS, GSM, LoRaWAN, LPWA, LTE, LTE-M, NB-Iot, UMTS
Number of Bands
7
Termination
U.FL (UMCC), IPEX MHF1
Mounting Type
Adhesive
Height (Max)
0.031" (0.80mm)
Product Status
Active
RF Family/Standard
Cellular, Navigation
VSWR
2.5, 1.8, 2.4, 1.8, 1.4, 2.1, 4.1
Antenna Type
PCB Trace
Frequency (Center/Band)
600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 3.3GHz, 3.4GHz, 3.5GHz, 3.6GHz
Power - Max
2 W
Features
Cable - 100mm
Return Loss
-7.4dB, -10.9dB, -7.7dB, -10.9dB, -15.6dB, -9.0dB, -4.3dB
Package
Bag
Gain
3.6dBi, 4.9dBi, 6.3dBi, 5.1dBi, 5.0dBi, 4.6dBi, 3.1dBi
Frequency Group
Wide Band
