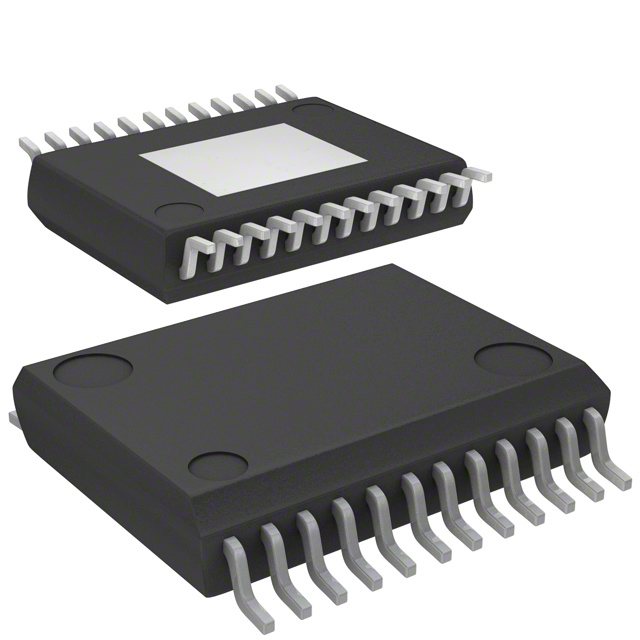

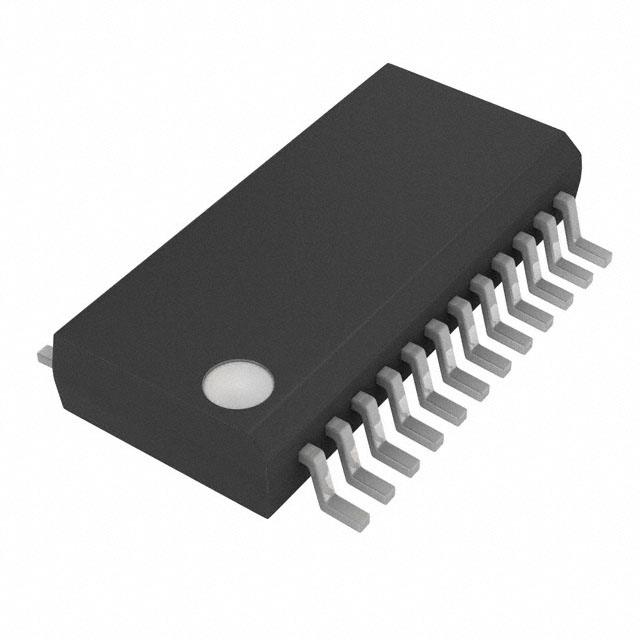

Image maybe reresentation
See specs for product details.
See specs for product details.
NCV7724DQBR2G
| Part No.: | NCV7724DQBR2G |
| RoHs Status: | RoHS Compliant |
| Manufacturer/Brand: | onsemi |
| Stock Condition: | In stock:12401 |
| Description: | IC HALF BRIDGE DRVR 1.1A 24SSOP |
| Ship From: | Hong Kong |
| Datasheets: | |
| Shhipment Way: | DHL/Fedex/TNT/UPS/EM |
| Ladder Price: | 1+ $4.55 2500+ $2.1977 |
| Recent price fluctuations have been significant. By inquiring now, you may get a price up to 50% lower than expected. |
WARM TIPS
- Product parameters show on this page may contain errors. Please refer to datasheet for specific product information.
- Please contact our sales staff for a real-time quotation as our website may not reflect the latest information on all products. The final price is subject to the inquiry result.
REQUEST QUOTE
Please fill in all required fields and click "
SUBMIT REQUEST"
| *Part No. | NCV7724DQBR2G |
| *Quantity | |
| Target Price(USD) | |
| Company Name | |
| *Contact Name | |
| *Your Email | |
| Phone | |
| Message | |
| *Company Type | OEM/CEM Distributor/Reseller Others |
Submit Request | |
Part No.
NCV7724DQBR2G
Operating Temperature
-40°C ~ 150°C (TJ)
Applications
DC Motors, General Purpose
Grade
Automotive
Output Configuration
Half Bridge (8)
Load Type
Inductive, Capacitive
Voltage - Load
5.5V ~ 32V
Mounting Type
Surface Mount
Current - Peak Output
1.1A
Rds On (Typ)
800mOhm LS, 800mOhm HS
Product Status
Active
Supplier Device Package
24-SSOP-EP
Qualification
AEC-Q100
Fault Protection
Over Current, Over Temperature, UVLO
Package / Case
24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Technology
NMOS
Voltage - Supply
3.15V ~ 5.25V
Features
Charge Pump
Package
Tape & Reel (TR);Cut Tape (CT);Digi-Reel®
Current - Output / Channel
1.1A
Interface
Logic, PWM, SPI, Serial
