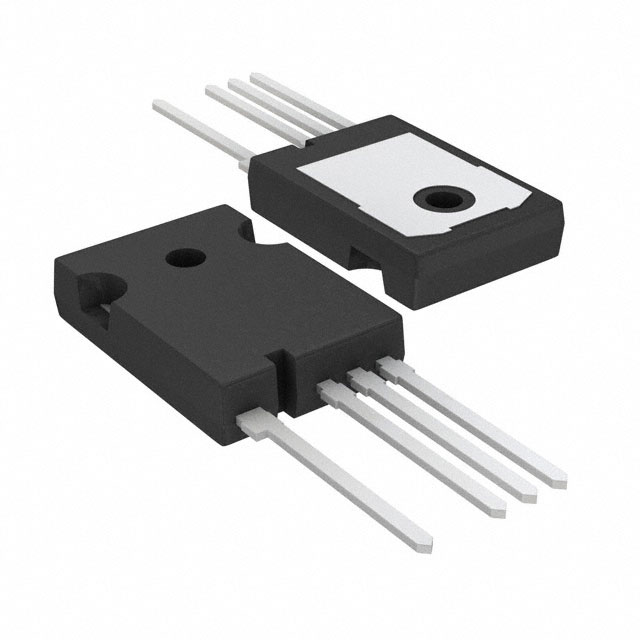

Image maybe reresentation
See specs for product details.
See specs for product details.
NGTB40N120FL3WG
| Part No.: | NGTB40N120FL3WG |
| RoHs Status: | RoHS Compliant |
| Manufacturer/Brand: | onsemi |
| Stock Condition: | In stock:447 |
| Description: | IGBT TRENCH FS 1200V 160A TO247 |
| Ship From: | Hong Kong |
| Datasheets: | |
| Shhipment Way: | DHL/Fedex/TNT/UPS/EM |
| Ladder Price: | 1+ $6.99 |
| Recent price fluctuations have been significant. By inquiring now, you may get a price up to 50% lower than expected. |
WARM TIPS
- Product parameters show on this page may contain errors. Please refer to datasheet for specific product information.
- Please contact our sales staff for a real-time quotation as our website may not reflect the latest information on all products. The final price is subject to the inquiry result.
REQUEST QUOTE
Please fill in all required fields and click "
SUBMIT REQUEST"
| *Part No. | NGTB40N120FL3WG |
| *Quantity | |
| Target Price(USD) | |
| Company Name | |
| *Contact Name | |
| *Your Email | |
| Phone | |
| Message | |
| *Company Type | OEM/CEM Distributor/Reseller Others |
Submit Request | |
Part No.
NGTB40N120FL3WG
Operating Temperature
-55°C ~ 175°C (TJ)
Input Type
Standard
Test Condition
600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)
136 ns
Switching Energy
1.6mJ (on), 1.1mJ (off)
Current - Collector (Ic) (Max)
160 A
Mounting Type
Through Hole
Product Status
Active
Voltage - Collector Emitter Breakdown (Max)
1200 V
Td (on/off) @ 25°C
18ns/145ns
Supplier Device Package
TO-247-3
Current - Collector Pulsed (Icm)
160 A
Vce(on) (Max) @ Vge, Ic
2.3V @ 15V, 40A
Gate Charge
212 nC
Package / Case
TO-247-3
Power - Max
454 W
Package
Tube
IGBT Type
Trench Field Stop
