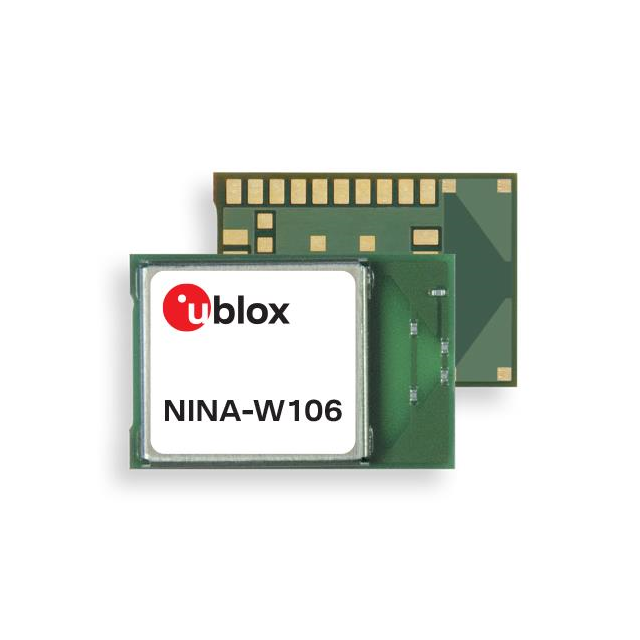

Image maybe reresentation
See specs for product details.
See specs for product details.
NINA-W156-03B
| Part No.: | NINA-W156-03B |
| Manufacturer/Brand: | u-blox |
| Stock Condition: | In stock:1694 |
| Description: | RF TXRX MOD BT WIFI PCB TH SMD |
| Ship From: | Hong Kong |
| Datasheets: | |
| Shhipment Way: | DHL/Fedex/TNT/UPS/EM |
| Ladder Price: | 1+ $13.04 500+ $9.5125 |
| Recent price fluctuations have been significant. By inquiring now, you may get a price up to 50% lower than expected. |
WARM TIPS
- Product parameters show on this page may contain errors. Please refer to datasheet for specific product information.
- Please contact our sales staff for a real-time quotation as our website may not reflect the latest information on all products. The final price is subject to the inquiry result.
REQUEST QUOTE
Please fill in all required fields and click "
SUBMIT REQUEST"
| *Part No. | NINA-W156-03B |
| *Quantity | |
| Target Price(USD) | |
| Company Name | |
| *Contact Name | |
| *Your Email | |
| Phone | |
| Message | |
| *Company Type | OEM/CEM Distributor/Reseller Others |
Submit Request | |
Part No.
NINA-W156-03B
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
67mA ~ 122mA
Serial Interfaces
GPIO, SPI, UART
Mounting Type
Surface Mount
Product Status
Active
RF Family/Standard
Bluetooth, WiFi
Power - Output
15dBm
Antenna Type
PCB Trace
Sensitivity
-96dBm
Data Rate
72Mbps
Memory Size
16Mb Flash, 4Mb SRAM
Package / Case
36-SMD Module
Current - Receiving
49mA ~ 117mA
Modulation
CCK, DSSS, GFSK, QDPSK, QPSK, OFDM
Voltage - Supply
3V ~ 3.6V
Frequency
2.4GHz ~ 2.5GHz
Utilized IC / Part
ESP32
Package
Tape & Reel (TR);Cut Tape (CT);Digi-Reel®
Protocol
802.11b/g/n, Bluetooth v4.2
